Graco SaniForce Sanitary Piston Pumps are ideal for most food-related, pharmaceutical and other high viscosity applications. The SaniForce 12:1 sanitary piston pump has flow rates up to 8.5 gpm (32 lpm) and maximum viscosity up to 1,000,000 cps when mounted on a drum or bin unloader. Other models offer a range of flow rate capacity and viscosity capabilities.

Graco Sanitary Piston Pumps and Anderson Dahlen’s Engineering Expertise Help Your Plant Run Smoothly

Our deep expertise in food processing and detailed knowledge of Graco’s sanitary piston pumps enables us to rapidly solve problems. We can design you a new turn-key integrated system or jump into action to find or make hard to find parts overnight to get your plant back in operation.

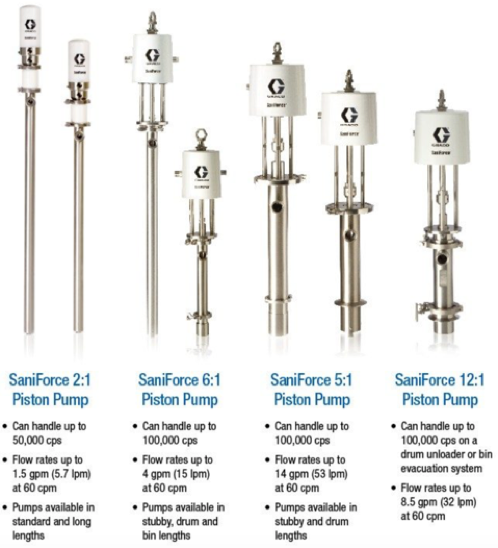

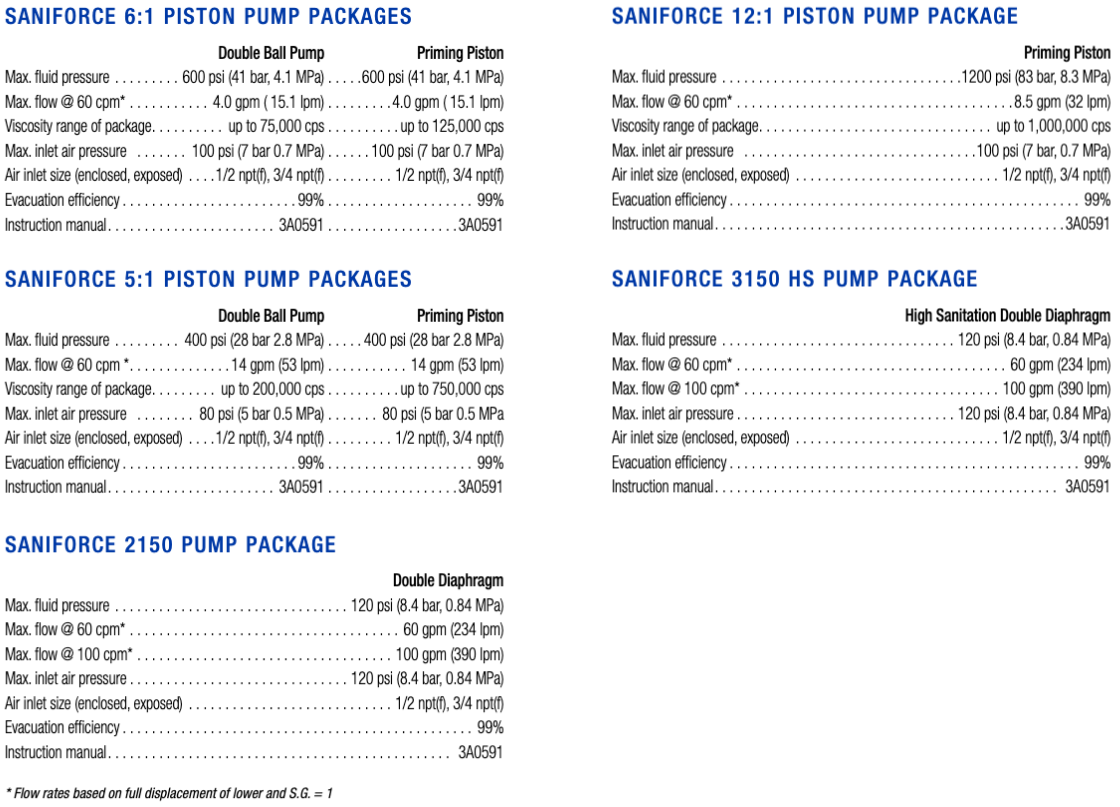

TECHNICAL SPECIFICATIONS INCLUDE:



SaniForce 12:1 Transfer Pump:

  • Flow rates up to 8.5 gpm (32 lpm)
  • Maximum fluid pressures up to 1200 psi (83 bar, 8.3 MPa)
  • Can handle up to 1,000,000 cps when mounted on a drum unloader or bin evacuation system (BES)
  • Quick knockdown lower
  • Suitable to pump products such as: cosmetics, fruit juice concentrates, creamy candy fillings, ice cream variegates, jams and jellies


SaniForce 2:1 Sanitary Piston Pump:

  • Flow rates range from 1.5 gpm (5.7 lpm) at 60 cpm, up to 2.5 gpm (9.5 lpm) at 100 cpm
  • Quick disconnect clamps for easy disassembly
  • Fluid transfer and supply of materials up to 50,000 cps
  • Suitable to pump products such as: fruit juice concentrates, creamy candy fillings, ice cream variegates, and cosmetics

SaniForce 5:1 Sanitary Transfer Pump:

  • Flow rates up to 14 gpm (53 lpm)
  • Maximum fluid pressure of 400 psi (28 bar; 2.8 MPa)
  • Siphon up to 5,000 cps and up to 100,000 cps if immersed
  • Available in double-ball and priming piston designs
  • Fluid transfer and supply of low to medium viscosity fluids
  • Suitable to pump products such as: cosmetics, fruit juice concentrates, creamy candy fillings, ice cream variegates, jams and jellies


SaniForce 6:1 Sanitary Piston Pump:

  • Flow rates up to 4.0 gpm (15.1 lpm)
  • Maximum fluid pressure of 600 psi (41 bar; 4.1 MPa)
  • Siphon up to 5,000 cps and up to 100,000 cps if immersed
  • Most advanced air motor on the market
  • Available in double-ball and priming piston designs
  • Fluid transfer and supply of low to medium viscosity fluids
  • Suitable to pump products such as: cosmetics, fruit juice concentrates, creamy candy fillings, ice cream variegates, jams and jellies

Graco Offers Unique Features in its line of Sanitary Piston Pumps



FDA-Compliant Shrouds:

  • Air operated units offer the most advanced air motor on the market
  • Easily removable FDA-compliant shrouds to clean and access modular air valve – reducing downtime
  • Quick knockdown lowers are made with 300 series stainless steel for long-lasting durability
  • SaniForce 2:1 offers Simple knuckle joint design for easy removal of air motor from lower

Pump peanut butter as easy as pie with these versatile workhorses of the food industry.

A leader in sanitary applications, Graco has designed these SaniForce pumps with sanitary flanges, quick knock down connections and a FDA compliant shroud for the air motor, which makes cleaning, and sanitization a breeze. The drum unloader and bin evacuation systems are also designed to help protect the ingredients from external contamination and bacteria because the follower plate and inflatable seal come in contact with all sides of the bin or drum, keeping the product covered during transfer.

Replace your outdated and dangerous scooping methods with a modern drum unloader positive displacement pump from Graco and Anderson Dahlen.
